PJ

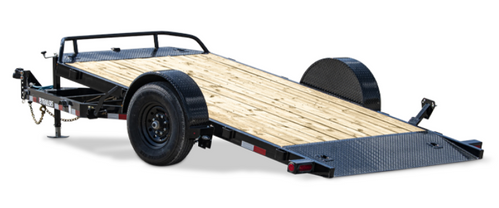

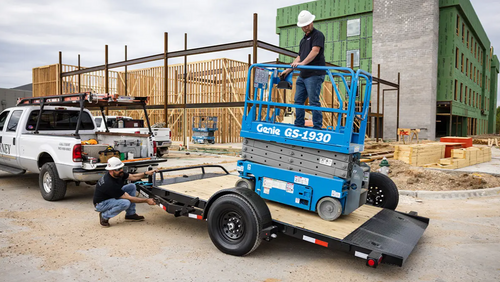

7,000 lbs, 13ft Single Axle Tilt Bed Trailer

PJ T1 13' Single Axle Tilt Bed Trailer Rental The PJ T1 13' Single Axle Tilt Bed Trailer is a compact and convenient hauling solution designed for transporting small equipment, utility vehicles, compact tractors, and other light-duty machinery. Featuring a tilt-bed design, this trailer eliminates the need for loading ramps, making equipment loading and unloading faster, safer, and more efficient. Built with a durable steel frame and a low deck height, the PJ T1 provides excellent stability and easy access for loading equipment. Its gravity-assisted tilt system allows operators to quickly load and secure cargo while minimizing setup time. The compact size and lightweight design make it easy to tow with a variety of vehicles, making it an excellent choice for contractors, landscapers, homeowners, and rental customers. Ideal for transporting skid steers, mini excavators, utility vehicles, lawn equipment, and small machinery, the PJ T1 Tilt Bed Trailer offers dependable performance and hassle-free operation for a wide range of hauling applications. Key Features: 13-foot tilt bed for easy loading and unloading Single axle design for lightweight towing No ramps required with gravity-assisted tilt deck Heavy-duty steel construction for durability Low deck height for convenient equipment access Integrated tie-down points for secure transport Easy to maneuver and tow with compatible vehicles Ideal for landscaping, construction, agricultural, and residential applications Whether you're moving compact equipment between job sites, transporting rental equipment, or hauling machinery for maintenance, the PJ T1 13' Single Axle Tilt Bed Trailer delivers the convenience, reliability, and versatility needed to get the job done efficiently.

Specifications & documents

7,000 lbs, 13ft Single Axle Tilt Bed Trailer

Trailer Type: Single Axle Hydraulic Gravity Tilt Equipment Trailer

GVWR: 7,000 lbs

Payload Capacity: 4,800–5,150 lbs

Empty Weight: 1,850–2,200 lbs

Deck Length: 13 ft

Deck Width: 81 in

Width Between Fenders: 81 in

Deck Height: 19–21 in

Tilt Angle: 11°

Tilt System: Hydraulic Cushioned Gravity Tilt

Axle: (1) 7,000 lb Drop Axle

Suspension: 6-Leaf Slipper Spring Suspension

Brakes: Electric Self-Adjusting Brakes

Tires: ST235/80R16 10-Ply Radials

Wheels: 16 in Steel Wheels

Coupler: Adjustable 2-5/16 in Demco EZ-Latch Coupler

Jack: 8,000 lb Drop Leg Jack

Frame: 5" × 2" Steel Tube Frame

Tongue: 5" Channel Steel Tongue

Crossmembers: 3" Channel on 16" Centers

Decking: 2" Treated Pine Lumber

Tie Downs: (5) Flush-Mount D-Rings + (1) Center D-Ring

Features: Stake Pockets, Removable Steel Fenders, LED Lighting, Breakaway Kit, Tool Tray, Knife Edge Tail, All-Weather Wiring Harness

Best For

  • Skid Steers

  • Compact Track Loaders

  • Scissor Lifts

  • Forklifts

  • Mini Excavators

  • Small Tractors

  • General Equipment Transport

PDFPJ T1 Tilt Trailer Spec Sheet.pdfOpen document

Contact our rental team for current pricing and availability. Confirm model specifications and suitability for your job before renting.
