Genie

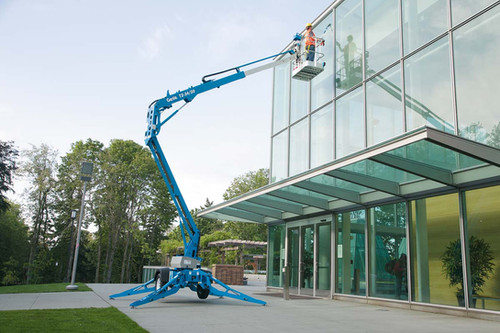

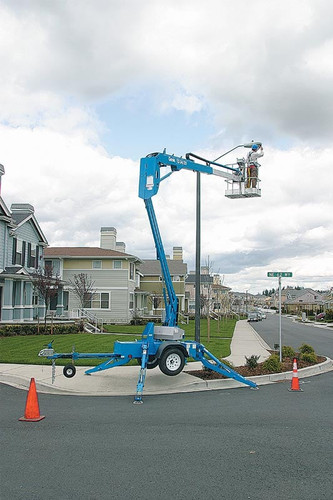

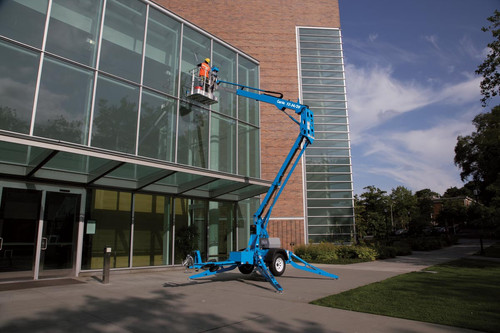

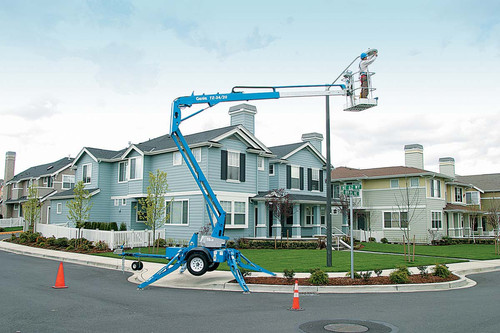

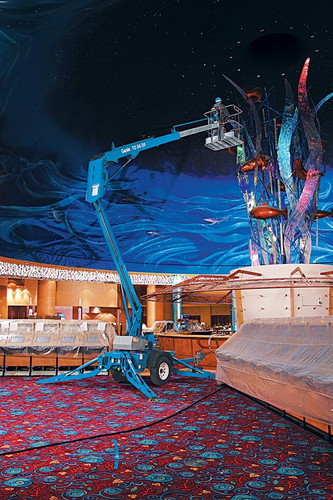

Genie TZ34/20, 34ft Electric Towable Knuckle Boom Lift

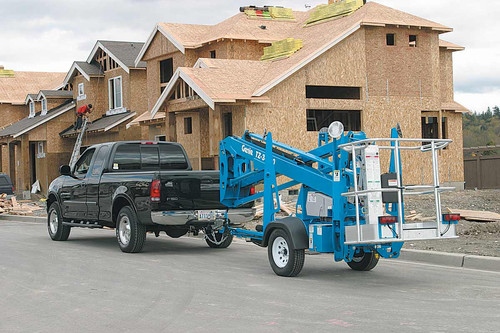

Genie TZ-34/20 Towable Boom Lift Rental The Genie TZ-34/20 Towable Boom Lift is a compact and versatile aerial work platform designed to provide safe, efficient access to elevated work areas in a wide range of applications. With a working height of up to 40 feet and an articulating boom design, this towable lift offers excellent up-and-over reach for accessing difficult work areas around buildings, landscaping, equipment, and other obstacles. Its lightweight, trailer-mounted design allows for easy transportation with a standard pickup truck, making it an ideal solution for contractors, maintenance crews, and facility managers who need mobility and quick setup between job sites. Hydraulic outriggers provide stability during operation, while intuitive controls allow for smooth and precise platform positioning. The Genie TZ-34/20 is perfect for building maintenance, painting, electrical work, signage installation, tree trimming, facility management, and light construction projects where portability and flexibility are essential. Key Features: Up to 40 ft working height Articulating boom for superior up-and-over reach Lightweight, trailer-mounted design for easy transport Hydraulic outriggers for fast setup and stability Smooth controls for precise platform positioning Compact footprint for access to confined work areas Suitable for indoor and outdoor applications Ideal for maintenance, construction, landscaping, and facility management projects Whether you're maintaining a commercial property, installing signage, trimming trees, or performing general construction work, the Genie TZ-34/20 delivers the portability, reach, and versatility needed to complete elevated tasks safely and efficiently.

Specifications & documents

Genie TZ34/20, 34ft Electric Towable

Working Height: 40 ft

Platform Height: 34 ft

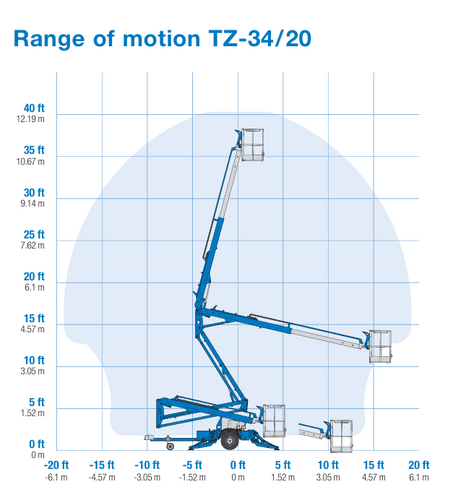

Horizontal Reach: 18 ft 4 in

Up-and-Over Clearance: 16 ft 1 in

Platform Capacity: 500 lbs

Platform Size: 26.8 in × 44 in

Machine Width (Stowed): 4 ft 9 in

Machine Length (Stowed): 18 ft

Machine Height (Stowed): 6 ft 5 in

Operating Weight: 3,155 lbs

Power Source: 24V Electric (Battery)

Towable: Yes

Turntable Rotation: 359° Non-Continuous

Platform Rotation: 90° Mechanical

Best For

  • Building maintenance

  • Sign installation

  • Tree trimming

  • Facility maintenance

  • Indoor and outdoor access work

  • Projects requiring a lightweight towable lift

PDFTZ34 and TZ50 Spec Sheet.pdfOpen document

Contact our rental team for current pricing and availability. Confirm model specifications and suitability for your job before renting.
