Genie

Genie TZ50, 50ft Electric Towable Knuckle Boom Lift

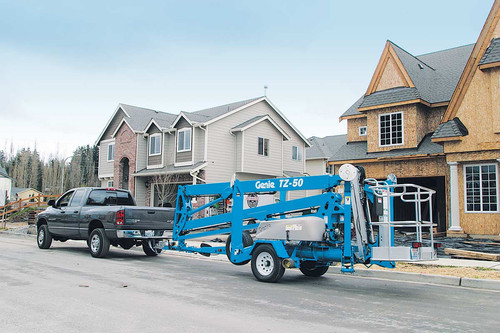

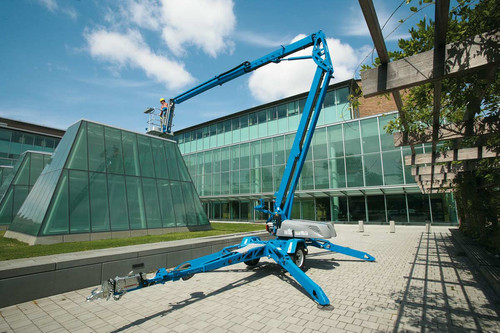

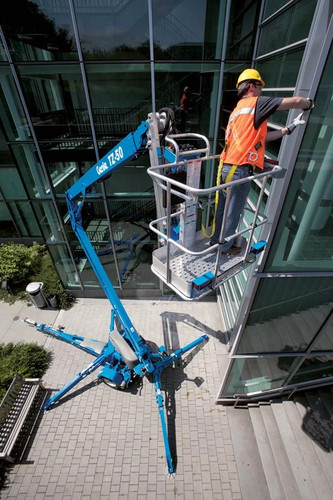

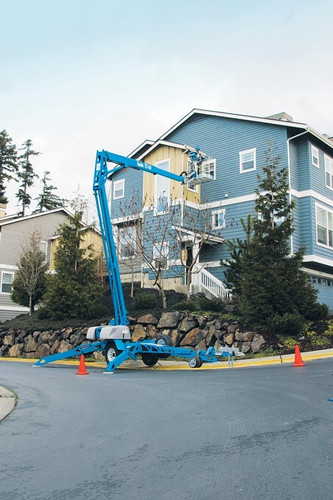

Genie TZ-50 Towable Boom Lift Rental The Genie TZ-50 Towable Boom Lift is a lightweight, versatile aerial work platform designed to provide safe and efficient access to elevated work areas. With a working height of up to 56 feet and impressive horizontal outreach, this towable boom lift offers exceptional flexibility for maintenance, construction, tree care, and facility management applications. Its trailer-mounted design allows for easy transportation between job sites using a standard pickup truck, making it a cost-effective solution for projects that require mobility and quick setup. The articulating boom and jib provide excellent up-and-over reach, enabling operators to access difficult work areas around buildings, landscaping, and other obstacles with ease. The Genie TZ-50 is ideal for indoor and outdoor applications where maneuverability, portability, and reliable performance are essential. Outriggers provide stability during operation, while intuitive controls allow for smooth and precise platform positioning. Key Features: Up to 56 ft working height Trailer-mounted design for easy transportation Articulating boom with jib for superior up-and-over reach Lightweight and easy to tow between job sites Quick setup with hydraulic outriggers Smooth controls for precise platform positioning Suitable for indoor and outdoor applications Ideal for maintenance, tree trimming, signage, construction, and facility management Whether you're performing building maintenance, installing signage, trimming trees, or completing construction projects, the Genie TZ-50 provides the reach, portability, and versatility needed to work safely and efficiently at height.

Specifications & documents

Genie TZ50, 50ft Electric Towable

Working Height: 55 ft 6 in

Platform Height: 49 ft 6 in

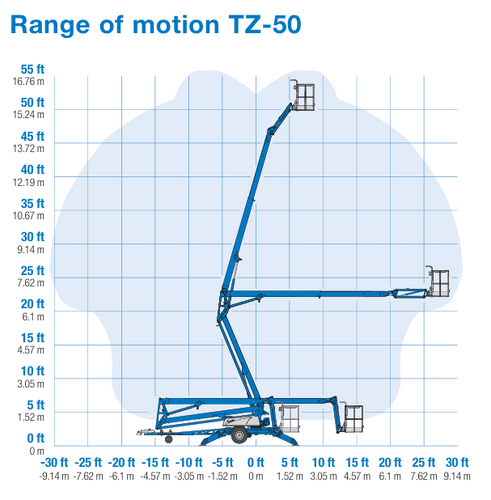

Horizontal Reach: 29 ft 2 in

Up-and-Over Clearance: 22 ft

Platform Capacity: 500 lbs

Platform Size: 26.8 in × 44 in

Machine Width (Stowed): 5 ft 6 in

Machine Length (Stowed): 23 ft 6 in

Machine Height (Stowed): 6 ft 10 in

Operating Weight: 4,400 lbs

Power Source: 24V Electric Battery

Optional Power: Hybrid (Honda Engine Charging System)

Towable: Yes

Turntable Rotation: 359° Non-Continuous

Platform Rotation: 160° Hydraulic

Best For

  • Building maintenance

  • Sign installation

  • Tree trimming

  • Facility maintenance

  • Indoor and outdoor access work

  • Applications requiring trailer-mounted mobility

PDFTZ34 and TZ50 Spec Sheet.pdfOpen document

Contact our rental team for current pricing and availability. Confirm model specifications and suitability for your job before renting.
