Genie

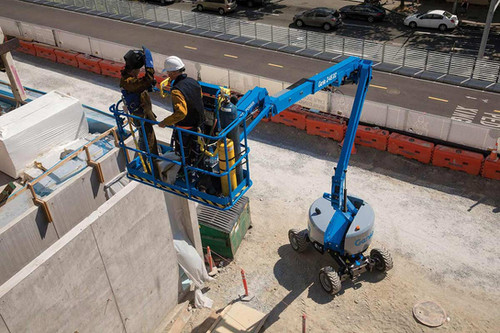

Genie Z45/25J, 45ft Knuckle Boom Lift, 4WD

Genie Z-45/25J Articulating Boom Lift Rental The Genie Z-45/25J Articulating Boom Lift is a versatile aerial work platform designed to provide exceptional flexibility and access for construction, maintenance, industrial, and facility management applications. With a working height of up to 51 feet and an articulating boom with jib, this lift allows operators to reach up, over, and around obstacles that would be difficult to access with a straight boom lift. Built for productivity and performance, the Z-45/25J features four-wheel drive, rough terrain capability, and precise platform controls that make it ideal for navigating challenging job site conditions. Its articulating design provides excellent positioning flexibility, while the rotating jib allows for enhanced maneuverability when working in confined or obstructed areas. Ideal for building maintenance, steel erection, electrical work, HVAC installation, painting, and industrial maintenance projects, the Genie Z-45/25J helps operators complete elevated tasks safely and efficiently. Key Features: Up to 51 ft working height Articulating boom with jib for superior up-and-over reach Four-wheel drive for excellent rough terrain performance Outstanding maneuverability around obstacles and structures Smooth proportional controls for precise platform positioning Spacious platform with room for workers, tools, and materials Durable construction designed for demanding job site environments Ideal for construction, maintenance, industrial, and commercial applications Whether you're working around buildings, equipment, piping, or structural obstacles, the Genie Z-45/25J provides the reach, flexibility, and reliability needed to access difficult work areas safely and efficiently.

Specifications & documents

Genie Z45/25J, 45ft Knuckle Boom Lift, 4WD

Working Height: 51 ft 9 in

Platform Height: 45 ft 9 in

Horizontal Reach: 25 ft 1 in

Up-and-Over Height: 23 ft 9 in

Platform Capacity: 500 lbs

Machine Width: 5 ft 10 in

Machine Length: 22 ft 5 in

Stowed Height: 6 ft 7 in

Operating Weight: 16,300–16,800 lbs

Power Source: Electric / Bi-Energy (varies by model)

Drive Type: 2WD

Platform Rotation: 160°

Jib Rotation: 135°

Turntable Rotation: 355° Non-Continuous

Best For

  • Indoor and outdoor maintenance

  • Commercial construction

  • Electrical and HVAC installation

  • Facility maintenance

  • Accessing hard-to-reach areas

  • Applications requiring up-and-over reach

PDFGenie Z45RT Spec Sheet.pdfOpen document

Contact our rental team for current pricing and availability. Confirm model specifications and suitability for your job before renting.
