John Deere

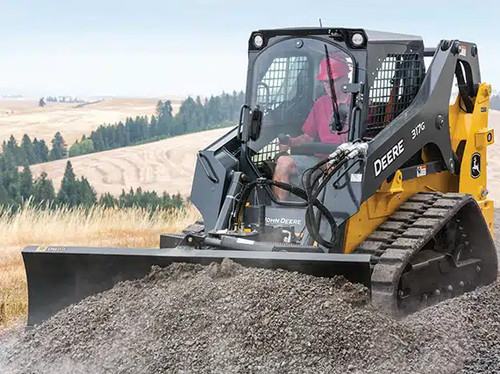

John Deere 317G Rubber Tracked Skid Steer

John Deere 317G Compact Track Loader Rental The John Deere 317G Compact Track Loader is a versatile and powerful machine designed to handle a wide range of construction, landscaping, agricultural, and material handling applications. Equipped with a durable rubber track system, the 317G delivers excellent traction, flotation, and stability on soft ground, muddy conditions, and uneven terrain while minimizing surface disturbance. Built for productivity and operator comfort, the 317G features responsive controls, impressive lifting performance, and exceptional visibility to help operators work efficiently in demanding environments. Its compact size allows it to maneuver easily in confined spaces while still providing the power needed for loading, grading, excavation, material transport, and site preparation tasks. Compatible with a wide variety of attachments, including buckets, forks, augers, trenchers, grapples, and more, the John Deere 317G is a highly versatile machine capable of tackling numerous job site applications with ease. Key Features: Rubber track undercarriage for superior traction and flotation Compact design for maneuverability in tight work areas Excellent lifting and material handling capabilities Low ground pressure to reduce surface damage Comfortable operator station with excellent visibility Durable construction for demanding job site conditions Compatible with a wide range of skid steer attachments Ideal for construction, landscaping, agriculture, and property maintenance Whether you're moving materials, grading surfaces, excavating, clearing land, or performing site preparation work, the John Deere 317G Compact Track Loader delivers the power, versatility, and reliability needed to maximize productivity on the job site.

Specifications & documents

John Deere 317G Rubber Tracked Skid Steer

Equipment Type: Compact Track Loader (Rubber Track Skid Steer)

Rated Operating Capacity: 2,125 lbs

Tipping Load: 6,070 lbs

Bucket Breakout Force: 6,000 lbs

Operating Weight: 8,420 lbs

Engine: Yanmar 4TNV86CHT Turbo Diesel

Gross Horsepower: 65 HP

Net Horsepower: 61 HP

Fuel Tank Capacity: 19 gal

Lift Type: Vertical Lift

Hinge Pin Height: 121 in (10 ft 1 in)

Dump Height: 95.6 in

Dump Reach: 31 in

Machine Width: 65.1 in

Machine Length (with bucket): 127.6 in

Machine Height: 78.5 in

Ground Clearance: 8.3 in

Track Width: 12.6 in

Travel Speed: 7.0 mph

Ground Pressure: 5.5 psi

Hydraulic Flow: 17 GPM Standard Flow

Hydraulic Pressure: 3,450 PSI

Best For

  • Loading and material handling

  • Grading and site preparation

  • Landscaping projects

  • Dirt and aggregate moving

  • Fork work and pallet handling

  • General construction applications

PDFJOHN DEERE 317G.pdfOpen document

Contact our rental team for current pricing and availability. Confirm model specifications and suitability for your job before renting.
