Wylie

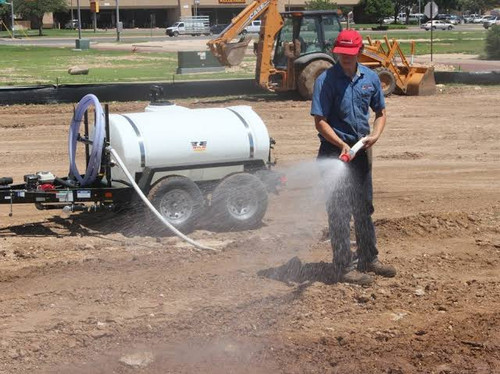

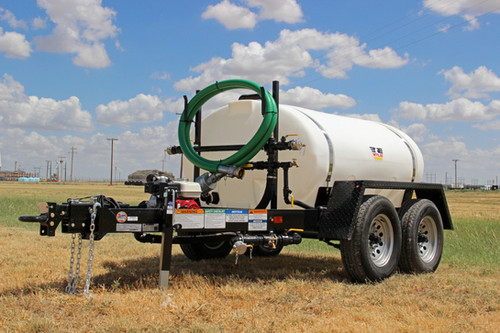

Wylie EXP-500-S, 500 gallon Towable Water Wagon

Wylie EXP-500-S Towable Water Wagon Rental The Wylie EXP-500-S Towable Water Wagon is a versatile and dependable water distribution solution designed for dust control, soil compaction, landscaping, concrete curing, and general job site water applications. With a 500-gallon tank capacity, this trailer-mounted water wagon provides a convenient and efficient way to transport and apply water where it's needed most. Built with a durable polyethylene tank and rugged trailer frame, the EXP-500-S is designed to withstand demanding construction, agricultural, and industrial environments. Its towable design allows for easy transportation around job sites, while the integrated spray system provides effective water distribution for dust suppression, road maintenance, and site preparation. The compact size and user-friendly operation make the Wylie EXP-500-S an excellent choice for contractors, landscapers, municipalities, and property managers seeking a reliable mobile water source. Key Features: 500-gallon water tank capacity Towable trailer design for easy transportation Durable polyethylene tank for long service life Efficient spray system for dust control and water distribution Ideal for soil compaction, concrete curing, and landscaping applications Rugged construction designed for demanding job site conditions Easy filling, transport, and operation Suitable for construction, agricultural, municipal, and commercial projects Whether you're controlling dust on a construction site, watering landscaping, compacting soil, or supporting general maintenance operations, the Wylie EXP-500-S Towable Water Wagon provides the portability, durability, and performance needed to keep your project running efficiently.

Specifications & documents

Wylie EXP-500-S, 500 gallon Towable Water Wagon

Equipment Type: Towable Water Wagon / Water Trailer

Tank Capacity: 500 Gallons

Tank Material: UV-Stabilized Polyethylene with Internal Baffles

Trailer Type: Tandem Axle Water Trailer

GVWR: 7,000 lbs

Empty Weight: Approximately 1,900 lbs

Loaded Weight: Approximately 6,100 lbs

Overall Length: 15 ft 8 in

Overall Width: 6 ft 6 in

Overall Height: 6 ft 8 in

Frame: Heavy-Duty 6" Channel Iron Frame

Axles: (2) 3,500 lb Axles

Brakes: Electric Brakes

Pump: 2" Centrifugal Pump

Engine: Honda GX120 Gas Engine

Engine Power: 4 HP

Pump Capacity: Up to 140 GPM

Spray Bar Width: 8 ft Galvanized Rear Spray Bar

Hose Reel: Included

Fire Hose: 25 ft x 1.5 in Hose with Nozzle

Hitch Type: Adjustable Height 2-5/16" Ball Coupler

Tires: ST205/75R15 Radial Tires

Features: Internal Baffles, Rear Spray Bar, Fire Hose & Nozzle, Hydrant Fill Adapter, Diamond Plate Fenders, DOT Lighting Package

Best For

  • Dust control and suppression

  • Soil compaction support

  • Road construction projects

  • Concrete cutting operations

  • Landscaping and irrigation

  • Construction site water supply

PDFWylie EXP500 Water Wagon.pdfOpen document

Contact our rental team for current pricing and availability. Confirm model specifications and suitability for your job before renting.
